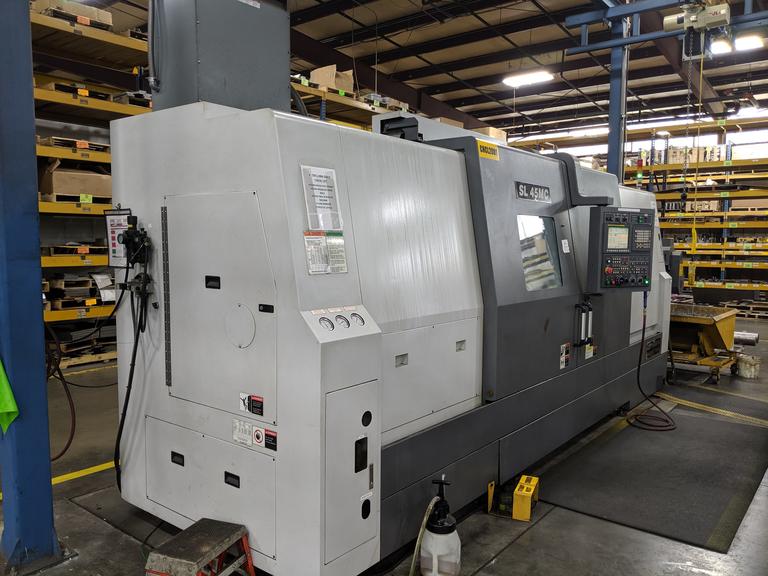

Samsung SL-45MC/2200BB Big Bore CNC Turning Center with Live Milling on Turret
Control: Fanuc Oi-TD CNC Control
Chuck Size: Samchully HCH-24B 24" 3-Jaw Hydraulic Chuck, 7.5" Hole Through
Swing Over Bed: 30.51"
Max Turning Diameter: 27.17"
Max Turning Length: 87.80"
Rapid Traverse Rates: 787 (X) / 708 (Z) IPM
Max Bar Diameter: 6.5" Hole Through the Draw Tube
Spindle Speeds: 2-Speed Geared Head, 0-1200 MAX RPM
Spindle Nose: A2-15
Spindle Orientation: Full C-Axis
Turret Capacity: 12 Stations, (12) Live Capable
Turret Travles, (X/Z): 13.8" / 91.73"
Tailstock Quill Taper: MT No. 5
Tailstock Quill Travel: 5.91"
Spindle Drive: 50HP Spindle Motor
Rotary Tool Drive: 10 HP Motor
28" x 87" Max Turning, 6.5" Bar Capacity, Live Milling on Turret, Rigid Boxed Way Construction, Under Power, Available Immediately!!
Fanuc Oi-TD CNC Control, Samchully HCH-24B Hydraulic 3-Jaw Chuck, 2-Speed Geared Head 50HP Spindle 0-1200 Max RPM, C-Axis on Main Spindle, 12 Station Turret with All Stations Live Tooling Capable, K4.1-Z Compact Steady Rest System, Tailstock System with Hydraulic Quill, Rigid Boxed Way Construction, Mist Buster Mist Collector, Side-Discharge Chip Conveyor System, Auto Doors, Coolant System with Tank and Pumps, Tooling and Accessories Including but not limited to: Spindle Liners, Approx (13) Live Tools, Turning and Boring Tool Holders, Tailstock Centers, Steady Rest Rollers, Machine Manuals.
200/220 Volt 3 Phase
