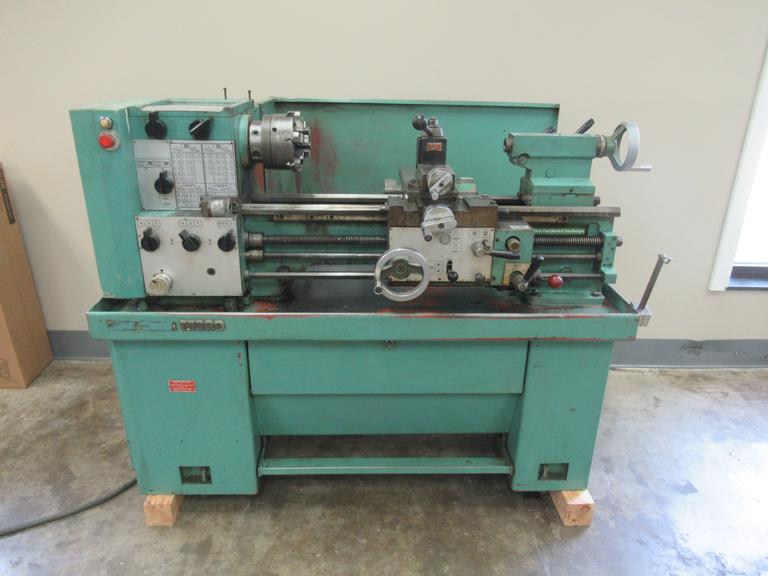

Harrison M300 13" x 28" Engine Lathe with 5C Lever Closer, 6-Jaw Chuck, Aloris Tool Post, Turret Attachment, Tailstock
Max Swing Over Ways: 13"
Max Swing Over Cross Slide: 8.26"
Swing In Gap: 18.8"
Max Center Distance: 28"
Hole Thru Spindle: 1.57"
Spindle Mount: D1-4 Camlock
Max Cross Slide Travel: 7.5"
Spindle Speeds: (12 Speeds) 40-2500 RPM
Max Compound Travel: 3.63"
Feed Rates: Longitudinal 0.001" - 0.080" Per Revolution
Tailstock Quill Travel: 4.38"
Tailstock Quill Taper: 3 MT
Threading Capacities: Inch and Metric
Drive Motor: 3 HP
13" x 28" Operation, 5C Lever Collet Closer, 6" 6-Jaw Chuck, 8" 6-Jaw Chuck, 40-2500 RPM in 12 Speeds, Cam Lock Spindle, Inch/Metric Threading, 6-Position Turret Attachement, Tailstock, Chip Pan, In-Base Coolant System, Aloris BXA Tool Post with (14) Holders
13" x 28" Operation, 5C Lever Collet Closer, 6" 6-Jaw Chuck, 8" 6-Jaw Chuck, 40-2500 RPM in 12 Speeds, Cam Lock Spindle, Inch/Metric Threading, 6-Position Turret Attachement, Tailstock, Chip Pan, In-Base Coolant System, Aloris BXA Tool Post with (14) Holders
230 Volt 3 Phase
