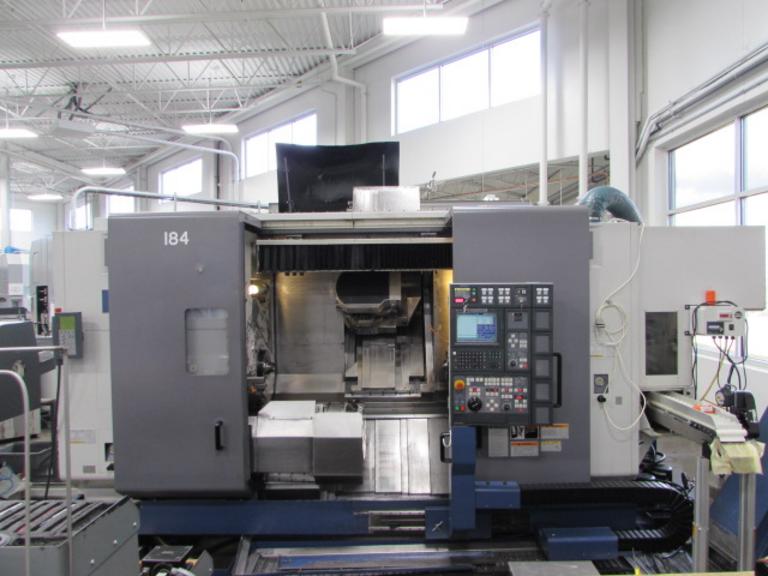

Mori Seiki MT-2000SZ Multi Axis Turning Center
Milling Head Rotating Range: 120 Degree (+/-)
Control: Mori Seiki MSG-501 CNC Control
Spindle Speeds: Spin1 4,500 RPM / Spin2 6,000 RPM
Spindle Speed Rages: 2
Spindle Nose: Spin1 A2-6 / Spin2 A2-5
Spindle Through Hole: Spin1 2.90" / Spin2 2.20"
Spindle Indexing: 0.001 Degree
Swing Over Work Piece: 29.50"
Swing Over Cross Slide: 23.60"
Distance Between Centers: 50.40"
Maximum Turning Diameter: 21.60"
Maximum Turning Length: 40.10"
Bar Capacity: Spin1 2.50" / Spin2 1.70"
Milling Head Travel X/Y/Z: 22.20" / 3.10" / 42.40"
Milling Head Rapid Rate X/Y/Z: 945 / 630 / 945 IPM
Turret Travel X/Z: 6.10" / 36.70"
Turret Feed Rate X/Z: 787 / 945 IPM
Rotary Tool Speed: 4,000 RPM
Spindle Drive : Spin1 20 HP / Spin2 10 HP
Tool Spindle Drive: 10 HP
Rotary Tool Drive: 10 HP
Mori Seiki MSG-501 CAPS Conversational Control w/ MAPS Software, Milling Head with B-Axis and Y-Axis, 12 Station Turret - Live Capable, LNS Quick Load Servo S2 Barfeeder, KM63 Shank Type Milling Head, 40 station Automatic Tool Changer, Sub-Spindle, Tool Presetter, Coolant System, Chip Conveyor. Approx 33 Turn Tool Holders, Approx 46 Milling Tool Holders, Manuals.
Mori Seiki MSG-501 CAPS Conversational Control w/ MAPS Software, Milling Head with B-Axis and Y-Axis, 12 Station Turret - Live Capable, LNS Quick Load Servo S2 Barfeeder, KM63 Shank Type Milling Head, 40 station Automatic Tool Changer, Sub-Spindle, Tool Presetter, Coolant System, Chip Conveyor. Approx 33 Turn Tool Holders, Approx 46 Milling Tool Holders, Manuals.
220 Volt 3 Phase
