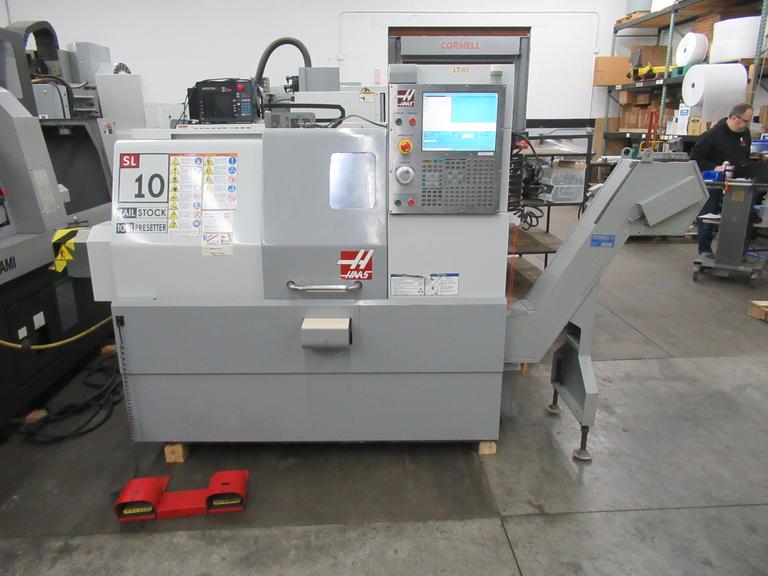

Haas SL-10 CNC Turning Center with Tailstock, Chip Conveyor
Control: Haas CNC Control with Coldfire Processor
Max Swing Over Bed: 16.25"
Max Swng Over Saddle: 8"
Max Turning Diameter: 11"
Max Turning Length: 14"
Hole Thru Spindle: 2.31"
Hole Thru Draw Tube: 1.81"
Spindle Nose: A2-5
Spindle Speeds: 6,000 Max RPM
Turret Capacity: 12 Station
Turret Index Time: 1 Second (Per 1 Tool)
Turret Travels (X,Z): 6.25" x 14"
Rapid Traverse Rate (X/Z): 1,200 IPM
Tailstock?: Yes
Tailstock Quill Diameter / Taper: #3MT
Tailstock Quill Travel: 4.0" Hydraulic Travel
Spindle Drive: 15 HP
Chuck Size: 6.5"
Haas CNC Control with Coldfire Processor, 12 Station Bolt-On Turret, Manual Tool Presetter, Parts Catcher, Hennig Chip Conveyor, Intuitive Programming, USB Port, Royal QG65 "Quick-Grip" Master Collet, 6" 3-Jaw Chuck, Tailstock, Lubrication System, Coolant System, Manuals
208/230 3 Phase
