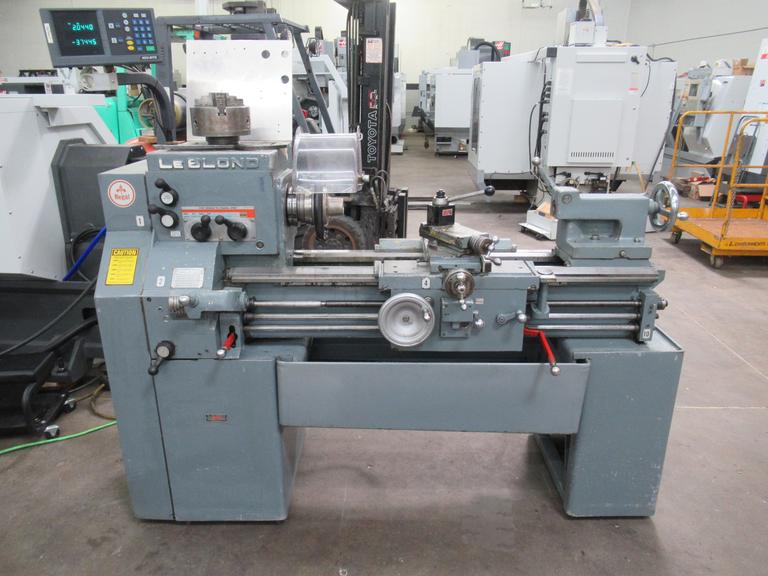

LeBlond Regal 15"x30" Gear Head Engine Lathe, Acu-Rite 2-Axis DRO, Tailstock, 3-Jaw and Collet Chucks
Stock: 7171Manufacturer: Leblond Model: Regal 15" x 30"Age: N/A
Max Swing Over Ways: 15.5"
Max Swing Over Cross Slide: 9.5"
Max Center Distance: 30"
Spindle Speeds: (12) 45 - 1,800 RPM
Hole Thru Spindle: 1-9/16"
Spindle Mount: LO Threaded Mount
Max Cross Slide Travel: 8-7/8"
Max Compound Travel: 3-7/8"
Feed Rates: (48) .0018 - .104 IPR
Tailstock Quill Travel: 5"
Tailstock Quill Taper: #3MT
Threading Capacities: Inch Threading (48) 2-224 TPI
Drive Motor: 7.5 HP
Equipped With:
Geared Head, Acu-Rite D200 2-Axis Digital Readouts, 5C Collet Speed Chuck, 8" 3-Jaw Chuck, Aloris Quick Change Tool Post w 1 Slide On Tool Holder, Inch Threading with Thread Dial, Tailstock, Slide-Out Chip Pan, Coolant System
Electrics:
220 / 440 Volt, 3 Phase (Currently Wired 220 Volt)
