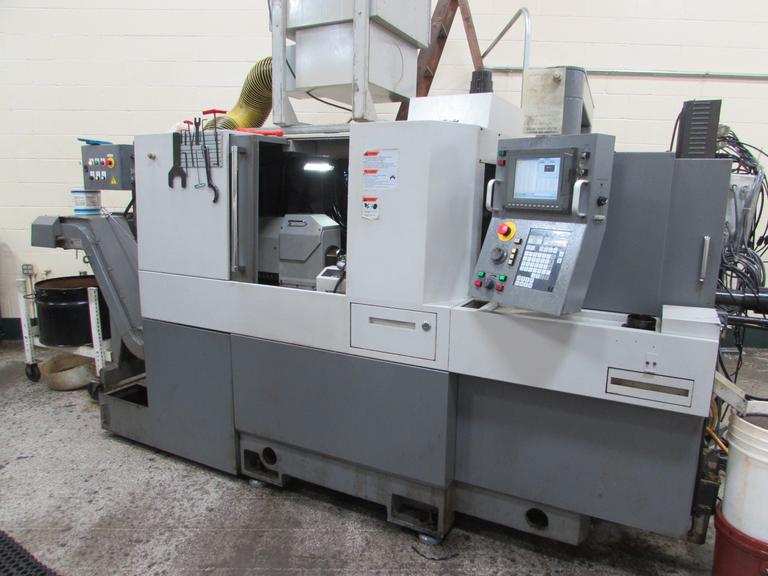

Citizen A32 VIIPL CNC Swiss Screw Machine with Edge C332 Servo Magazine Bar Feeder, Parts Catcher  Conveyor, Chip Conveyor, NSK High Speed Spindles

Citizen A32 VIIPL CNC Swiss Screw Machine with Edge C332 Servo Magazine Bar Feeder, Parts Catcher Conveyor, Chip Conveyor, NSK High Speed Spindles

Stock: Manufacturer: Citizen Model: A32 Type VIIPLAge: 2009

Control: Citizien Cincom (Mitsubishi Meldas) CNC Control

Maximum Machining Diameter: 32mm

Maximum Machining Length: 320mm

Main Spindle Speeds: 8000 Max RPM

Back Spindle Speeds: 8000 Max RPM

Rotary Tool Speeds: 5000 Max RPM

Back Spindle Max Chucking Diameter: 32mm

Turning Tools: 10 Turning Tool Stations (6 Static, 4 Live)

Rotary (Live) Tools: 4 Live Tool Stations - Plus 3 Backworking Live Stations

Front Endworking Tools: 4 Stations

Back Endworking Tools: 9 Total Stations (4 + 5)

Rapid Traverse (X/Y/Z): (45m/min X2,Y1,Z1,Z2) (32m/min X1)

Main Spindle Drive: 7.5 KW

Back Spindle Drive: 3.7 KW

Rotary Tool Drive: 1 KW

Cutting Tool Shank/Sleeve Size: 24.5mm

Main Spindle Indexing: C-Axis

Sub-Spindle Indexing: C-Axis

Equipped With:

Cincom CNC Control, C-axis on Main and Sub-Spindles, Parts Catcher, Small Parts Conveyor, Backworking Tool Block with (3) Live Back Endworking Stations and GSC110 Live Holders, CoolBlaster 10 Line High Pressure Coolant Unit, (4) NSK 60,000 RPM Spindles and Controls with Endworking Tool Block, Chip Conveyor, Edge C332 12' Magazine Bar Feed, Manuals

Electrics:

220 Volt, 3 Phase
