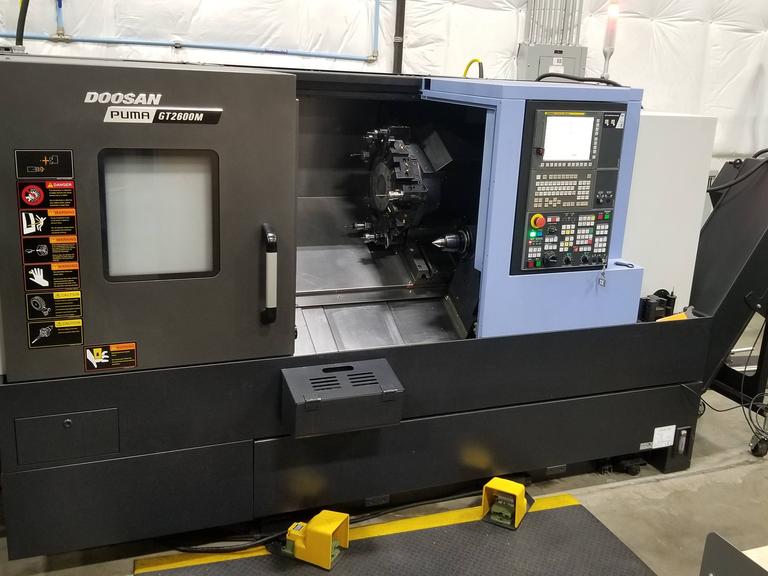

Doosan Puma GT2600M CNC Turning Center with 10" Chuck, 12-Station Turret with Live Milling Capability, LOW HOURS
Control: Doosan-Fanuc i Series CNC Control
Chuck Size: 10" Chuck
Max Turning Diameter: 14.96"
Max Turning Length: 24"
Rapid Traverse Rates: X-945, Z-1181 IPM
Max Bar Diameter: 3.2"
Spindle Speeds: 3500 RPM
Spindle Nose: A2-8
Turret Capacity: 12-Stations
Turret Travles, (X/Z): 10.23" / 26.8"
Live Tool Speed: 5000 RPM
Spindle Drive: 35 HP
Rotary Tool Drive: 7.5 HP
Doosan-Fanuc i Series CNC Control, 10" Chuck, Hardinge FlexC 65 Quick Change Collet Chuck with Assorted Collets, 12-Station Turret with Live Milling Capability, Parts Catcher, Tailstock, 3.2" Hole Thru Spindle, Hennig Chip Conveyor, Coolant System, Automatic Tool Presetter, Assorted Static and (1) Axial and (2) Radial Live Tool Holders, Manuals and Documentation.
Doosan-Fanuc i Series CNC Control, 10" Chuck, Hardinge FlexC 65 Quick Change Collet Chuck with Assorted Collets, 12-Station Turret with Live Milling Capability, Parts Catcher, Tailstock, 3.2" Hole Thru Spindle, Hennig Chip Conveyor, Coolant System, Automatic Tool Presetter, Assorted Static and (1) Axial and (2) Radial Live Tool Holders, Manuals and Documentation.
220 Volts, 3 Phase
