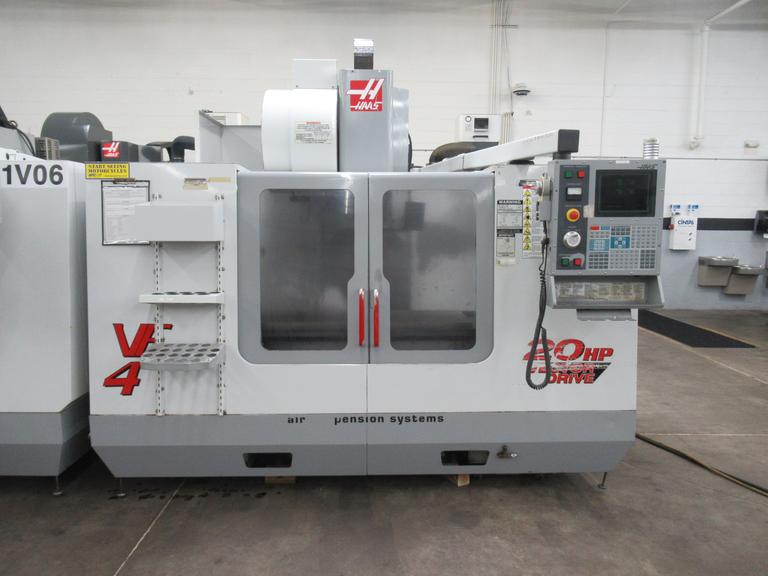

Haas VF-4 CNC Vertical Machining Center, 10K Spindle, 2-Speed Gearbox, 24 Station Twin-Arm ATC, Chip Auger
Machine Control: Haas 32 Bit CNC Control
Machine Travels (X/Y/Z): 50" x 20" x 25"
Table Size: 52" x 18"
Table Capacity: 3,500 Lbs.
Spindle Taper: Cat 40 Taper
Spindle Speeds: 10,000 RPM
Transmission: 2-Speed Gearbox
Rapid Traverse Rate (X/Y/Z): 710 IPM
Maximum Cutting Feed Rate: 650 IPM
Tool Changer Style: Side-Mount Twin-Arm
Tool Change Time: 2.8 Seconds
Tool Changer Capacity: 24 Stations
Max Tool weight: 12 Lbs.
Spindle Drive: 20 HP Vector Spindle Drive
Spindle To Table Distance: 4" - 29"
Haas 32 Bit CNC Control, 10,000 RPM Max Spindle Speed, 2-Speed Gearbox, 4th Axis Drive and Connector (Brush Motor Style)710 IPM Brushless Servo Drives, 20 HP Vector Spindle Drive, Remote Jog Handle, Chip Auger, Coolant System, 3-1/2" Floppy Drive
Haas 32 Bit CNC Control, 10,000 RPM Max Spindle Speed, 2-Speed Gearbox, 4th Axis Drive and Connector (Brush Motor Style)710 IPM Brushless Servo Drives, 20 HP Vector Spindle Drive, Remote Jog Handle, Chip Auger, Coolant System, 3-1/2" Floppy Drive
208/230 Volt, 3 Phase
