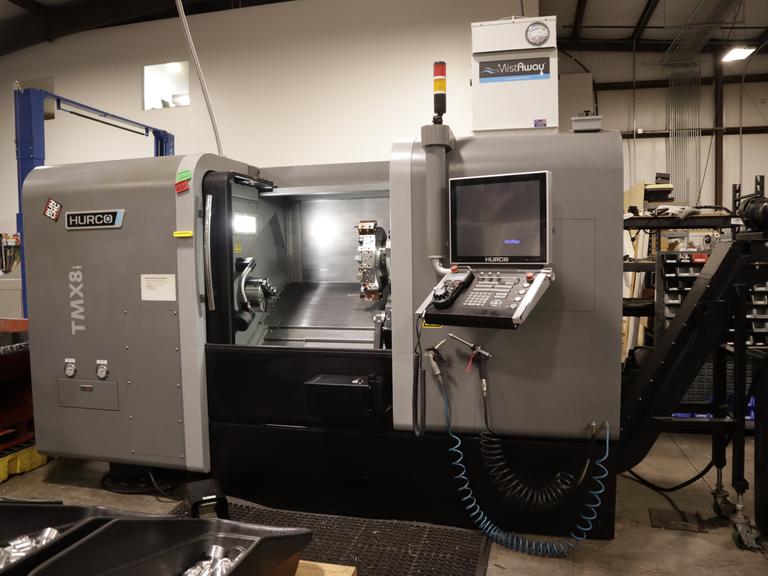

Hurco TMX-8i CNC Lathe with Renishaw Tool Presetter, Parts Catcher, Chip Conveyor, Programmable Tailstock - New 2016!
Control: HURCO WIN MAX CONTROL
Max Swing Over Bed: 25.2
Max Swing Over Saddle: 16.34
Max Turning Diameter: 14
Max Bar Capacity: 2.6"
Turret Capacity: 12
Turret Index Time: .20
Turret Travels (X, Z): 8" X 22" With W from Tailstock W Axis Travel 25.2
Rapid Traverse Rates (X, Z): 1181 IPM / 1181 IPM
Sub Spindle Speeds: 4500 RPM
Sub Spindle Nose: A2-6
Chuck Diameter: 8"
The TMX-8i is a CNC lathe that specializes in turning operations. It is designed for the machining of cylindrical and contoured workpieces. One of the features is live tooling, which allows for milling and drilling operations in addition to turning. This makes it suitable for complex parts that require multiple machining processes. The lathe is equipped with a 12-station tool turret that can hold multiple cutting tools, providing flexibility in tool changes and setup for different operations. The Hurco TMX-8i has a W-axis and a sondary programmable sub-spindle or counter-spindle. On machines with a secondary spindle, the W-axis positions the secondary spindle for machining.
Hurco Winmax Control, LCD Remote Jog Handwheel, Parts Catcher, Renishaw Tool Presetter, Oil Skimmer, Hurco Chip Conveyor, 8" 3-Jaw Hydraulic Chuck, 12 Station Turret, Programmable Tailstock with W Axis of 25.2", 3D Graphics, Vari-Speed Mist Away Mist Collector, Habor Spindle Oil Chiller, Coolant System, 1345 Spindle Hours
230 Volt
