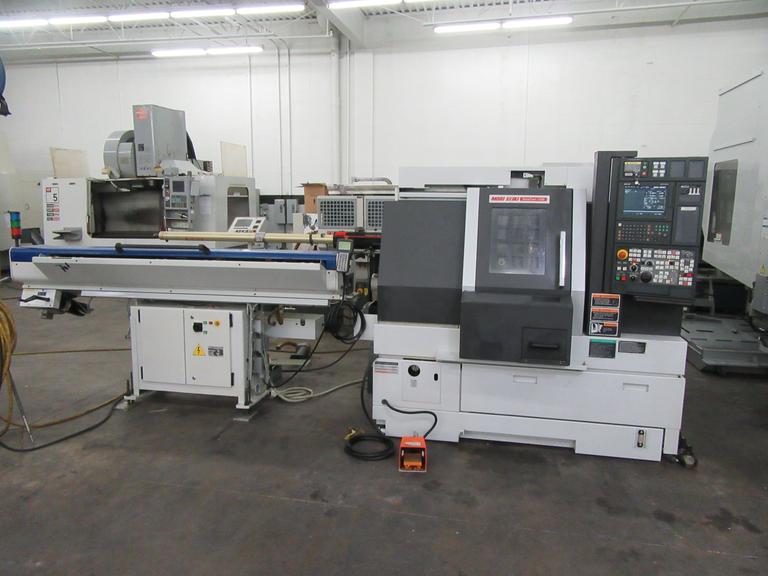

Mori Seiki Duraturn 1530 CNC Turning Center with IEMCO Prodigy 547 Magazine Barfeeder

Mori Seiki Duraturn 1530 CNC Turning Center with IEMCO Prodigy 547 Magazine Barfeeder

Stock: 6471Manufacturer: Mori Seiki Model: Duraturn 1530Age: 2007

Control: MSX-504III CNC Control

Max Swing Over Bed: 21.65" (550mm)

Max Swng Over Saddle: 18.70"

Max Turning Diameter: 13.78"

Max Turning Length: 13.19"

Spindle Speeds: 0-6,000 RPM

Spindle Drive: 15HP

Spindle Nose: A2-5

Max Bar Capacity: 2" (51mm)

Hole Thru Spindle: 2.40"

Hole Thru Draw Tube: 2.01"

Turret Capacity: 12 Stations

Turret Travels (X,Z): 7.87" x 14.57"

Rapid Traverse Rate (X/Z): 944.88 IPM

Tailstock?: No Tailstock

VIDEOS

Description:

Mori Seiki MSX-504III CNC Control, 5C Collet Chuck and 6" 3-Jaw Chuck, 12 Station Bolt-On Turret Including Turret Tool Holders, IEMCA Prodigy 547 Magazine Barfeeder, Parts Catcher, Coolant System, Assorted Spindle Liners, Tool Holders and Sleeves,  Machine and Barfeed Manuals.

Equipped With:

Mori Seiki MSX-504III CNC Control, 5C Collet Chuck and 6" 3-Jaw Chuck, 12 Station Bolt-On Turret Including Turret Tool Holders, IEMCA Prodigy 547 Magazine Barfeeder, Parts Catcher, Coolant System, Assorted Spindle Liners, Tool Holders and Sleeves,  Machine and Barfeed Manuals.

Electrics:

220 Volt 3 Phase
